Helical Static Mixers

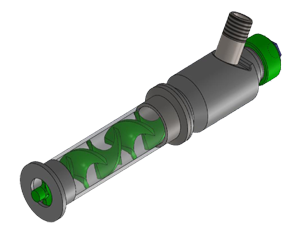

DKS® Helical Static Mixer (H Type)

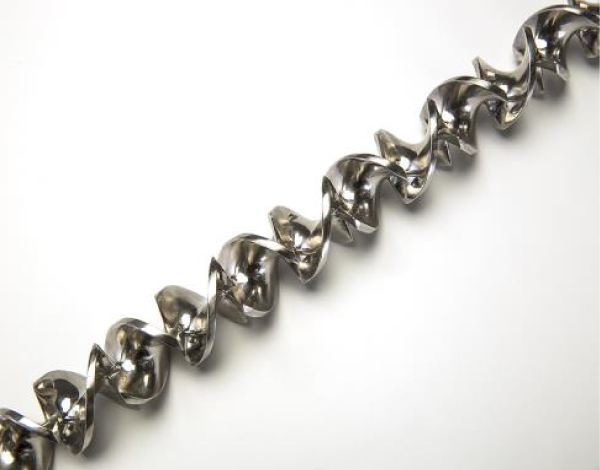

Helical static mixers can handle a wide range of materials, each designed in a 90° helical arrangement with variable helical elements to ensure the homogeneous mixing of continuous liquids or gases over a specified length.







We Don’t Leave It to Luck
Manufactured from stainless steel, DKS® has specialized in high-quality mixing elements for the process industry for many years. With our expertise, we offer Helical Static Mixers that save time and provide practicality in processes requiring compliance with health and sterilization standards. Industries such as the food and pharmaceutical sectors achieve high-quality homogeneous mixing without any issues with our precision static mixers.”



How Does a Helical Static Mixer Work?

The first helical element rotates the flow in one direction, while the subsequent feature reverses the flow direction. This process creates an additional mixing effect that enhances product homogeneity.

The flow is forced to be completely reversed, continuously moving toward the center of the inner pipe wall and repeatedly back to the center.

Due to its very smooth shape, excellent surface quality (Ra 0.6 – 0.8), and continuous structure, there are no dead spots in the mixer where any product can stagnate or be disrupted.

The helical mixer, with extremely tight tolerances and perfect fit, prevents dead spots for product accumulation.

DKS® Static Mixers are customized sequential mixers. Static pipe-shaped mixers can be dimensioned for almost all volume flows, densities, viscosities, and substance-specific properties.
