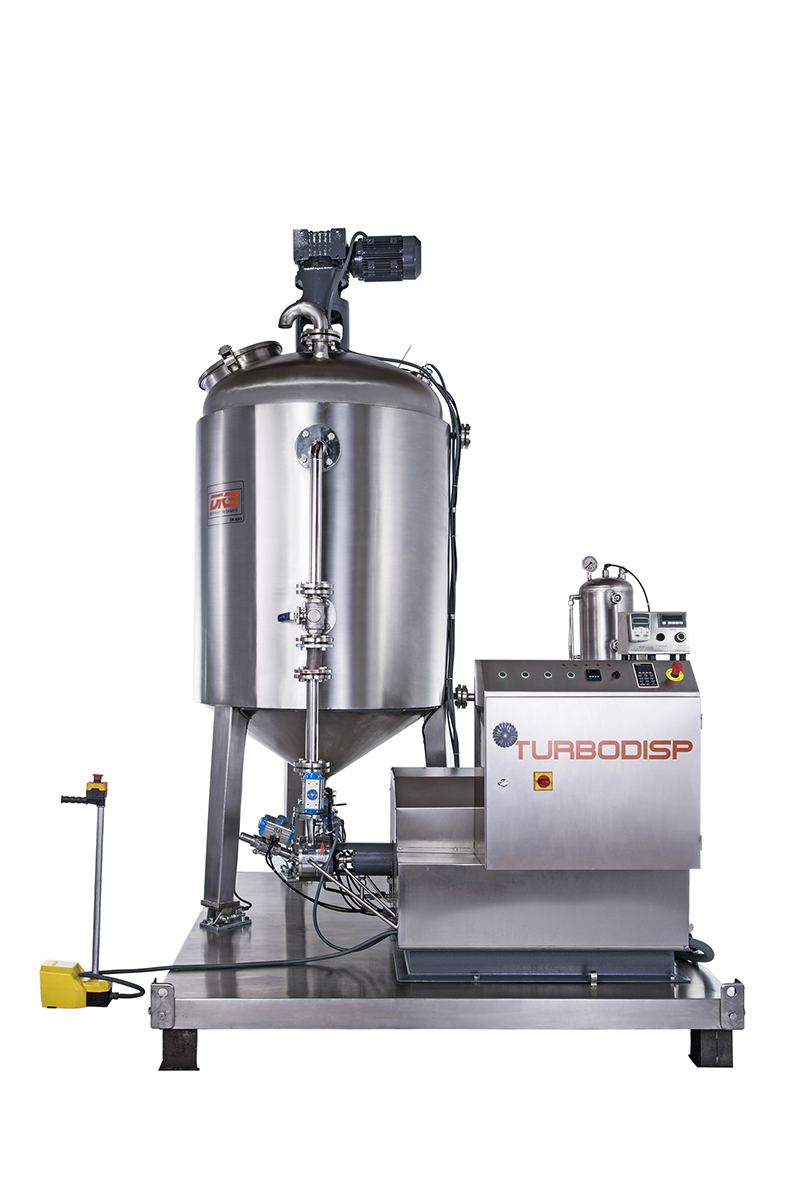

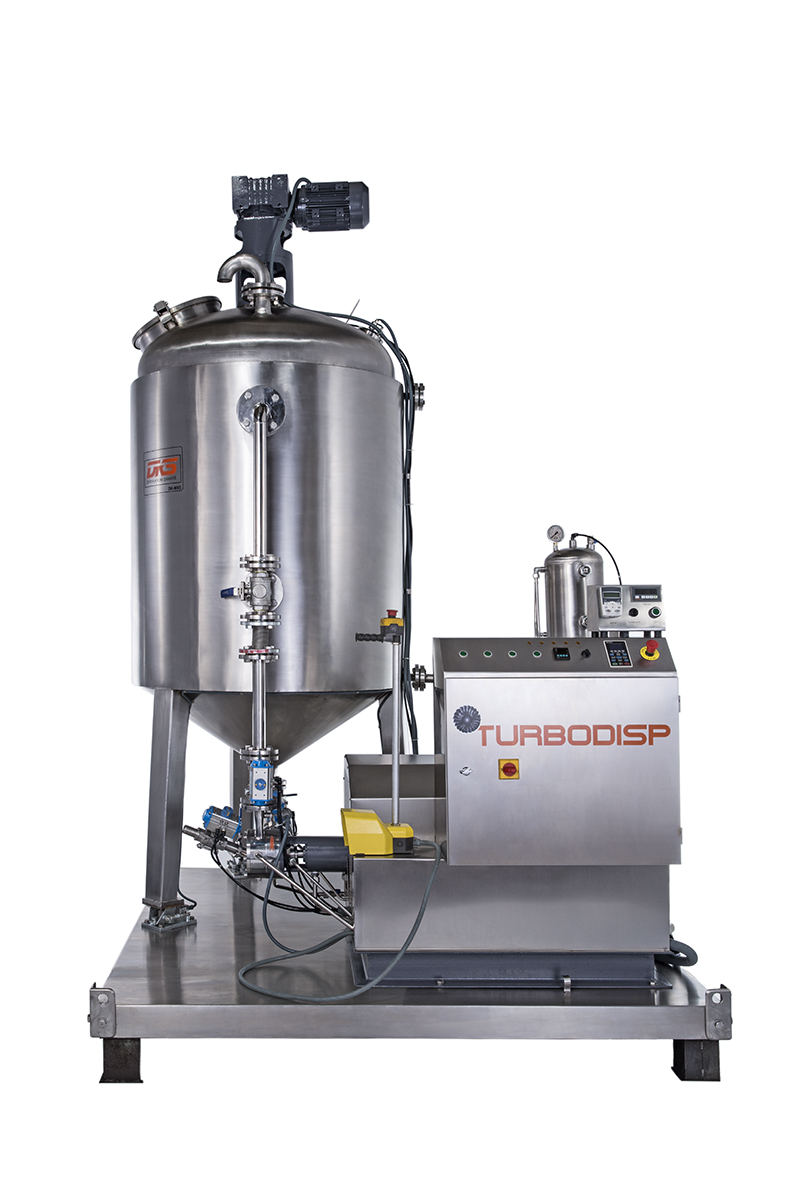

Turbodisp Set

Ready Solutions

With TURBODISP SET, we offer a compact solution for capacities ranging from 10 to 1000 liters. Thanks to this ready-made system, all you need to do is prepare your recipe and press the start button.

Derya Krom Sanayi is always by your side, unwavering in its commitment to achieving 100% customer satisfaction.

1000 Liter Tank

Volume: 1000 liters

Material: AISI 304 – AISI 316 – AISI 316 Ti

Pressure: 2 Bar

Heating-Cooling: Jacketed System

Mixing Blades: Impellers

Motor: 3 kW, 1-100 rpm

Sealing: Mechanical Seal

Top Dome Nozzles: Manhole, Light, Motor, 1½” Inlet, 2” Breather

Weighing: Load Cell

Heat Control: PT100

Bottom Valve: Manual Ball Valve

Control Panel: Manual

Turbodisp 80

Material: AISI 304 – AISI 316 – AISI 316 Ti – Special Stainless Alloys

Motor: 37 kW

Heating-Cooling: Jacketed (with external water)

Sealing: Special Mechanical Seal

Speed: 8000 rpm Frequency Controlled

Dust Loading Pressure: 700 mmHg

Heat Control: PT100

Viscosity: 100,000 mPas

All Valves: Actuated Ball Valves

Control Panel: Manual
