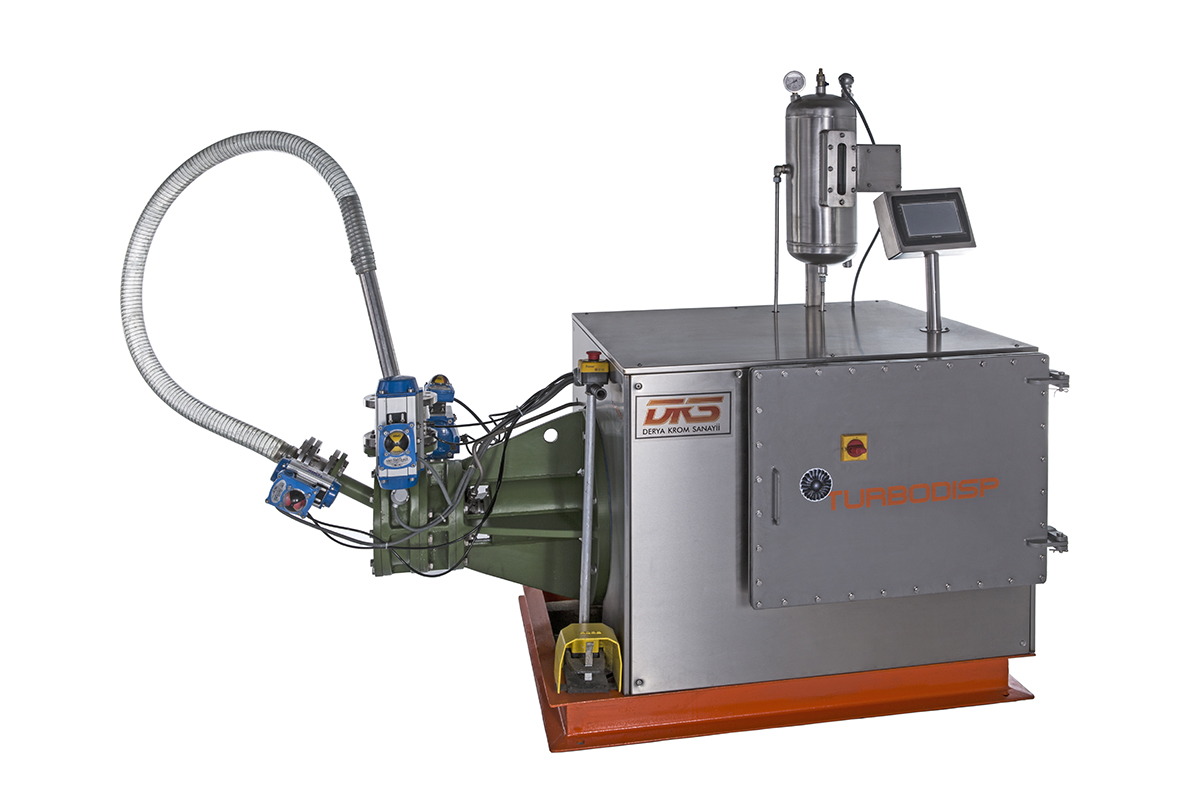

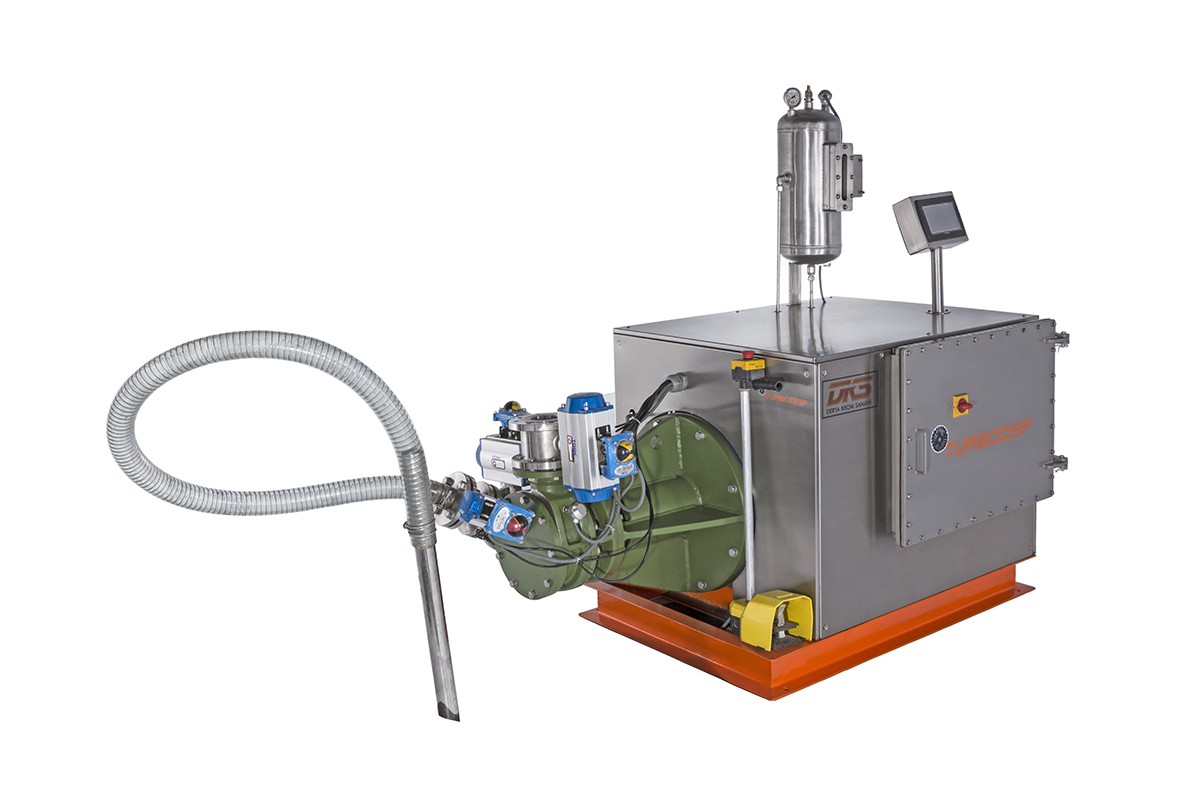

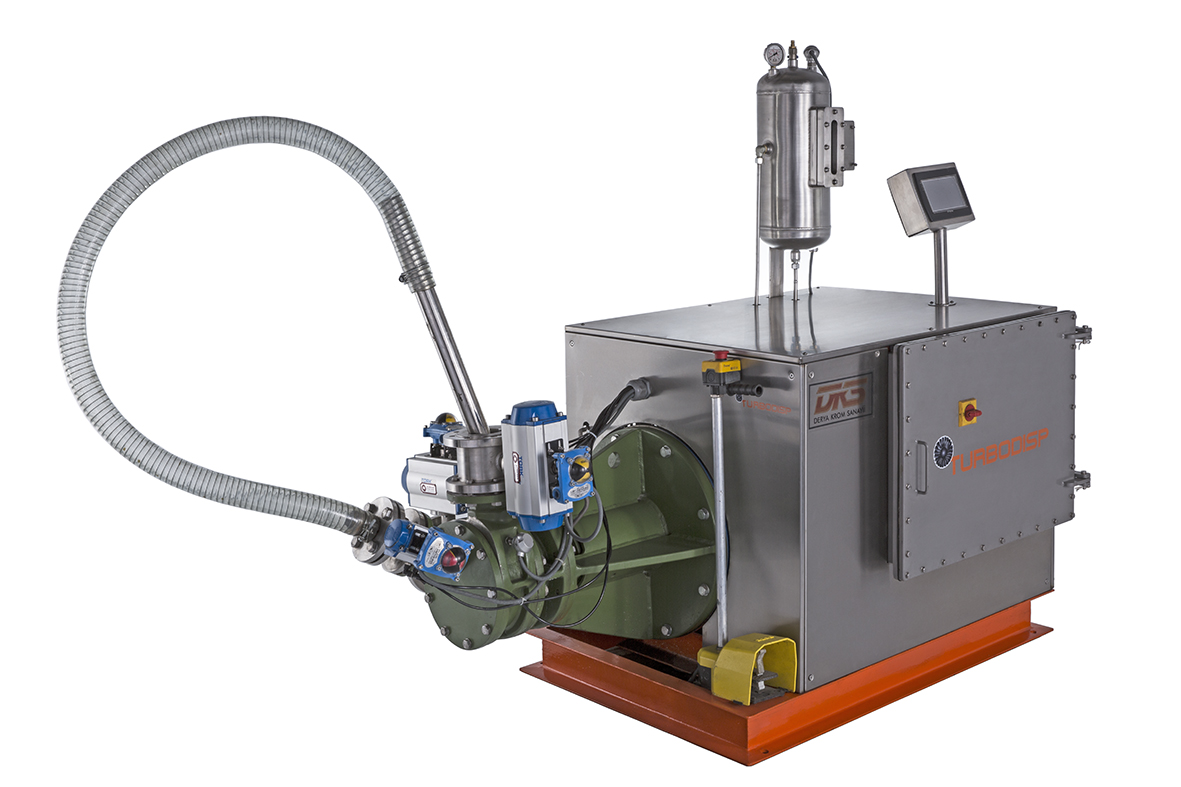

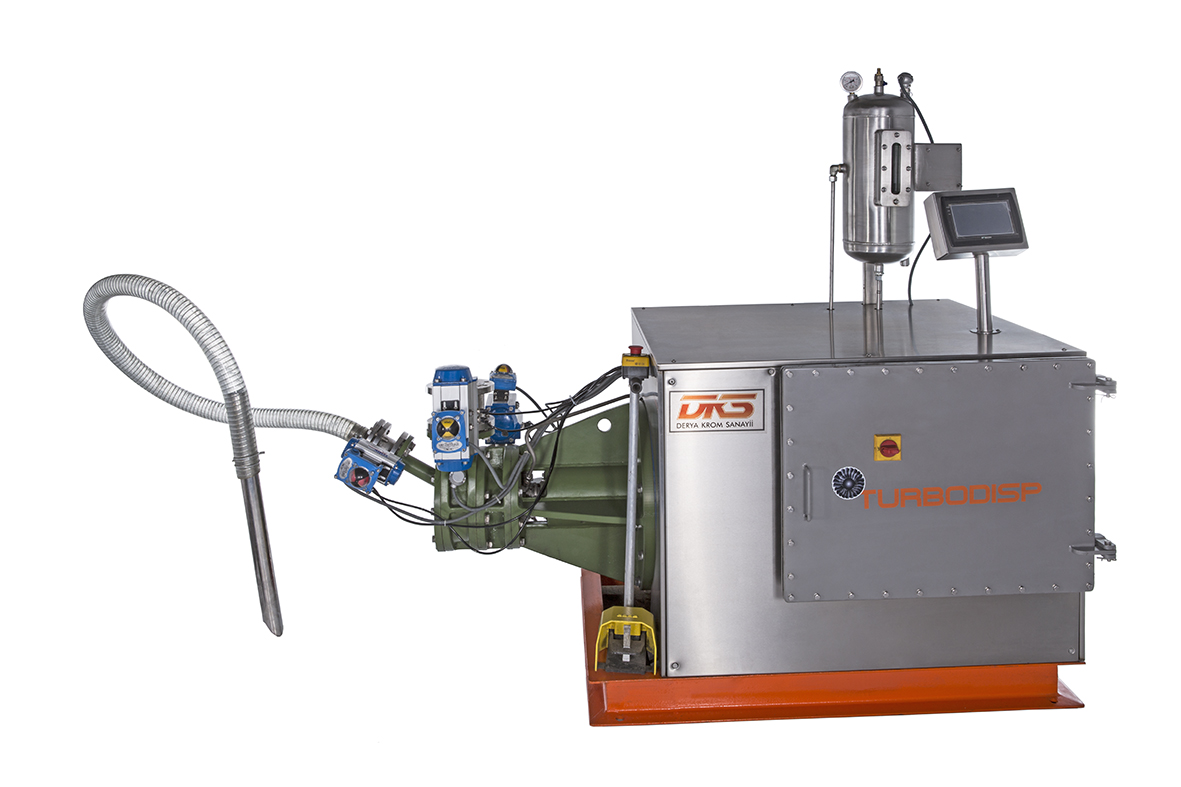

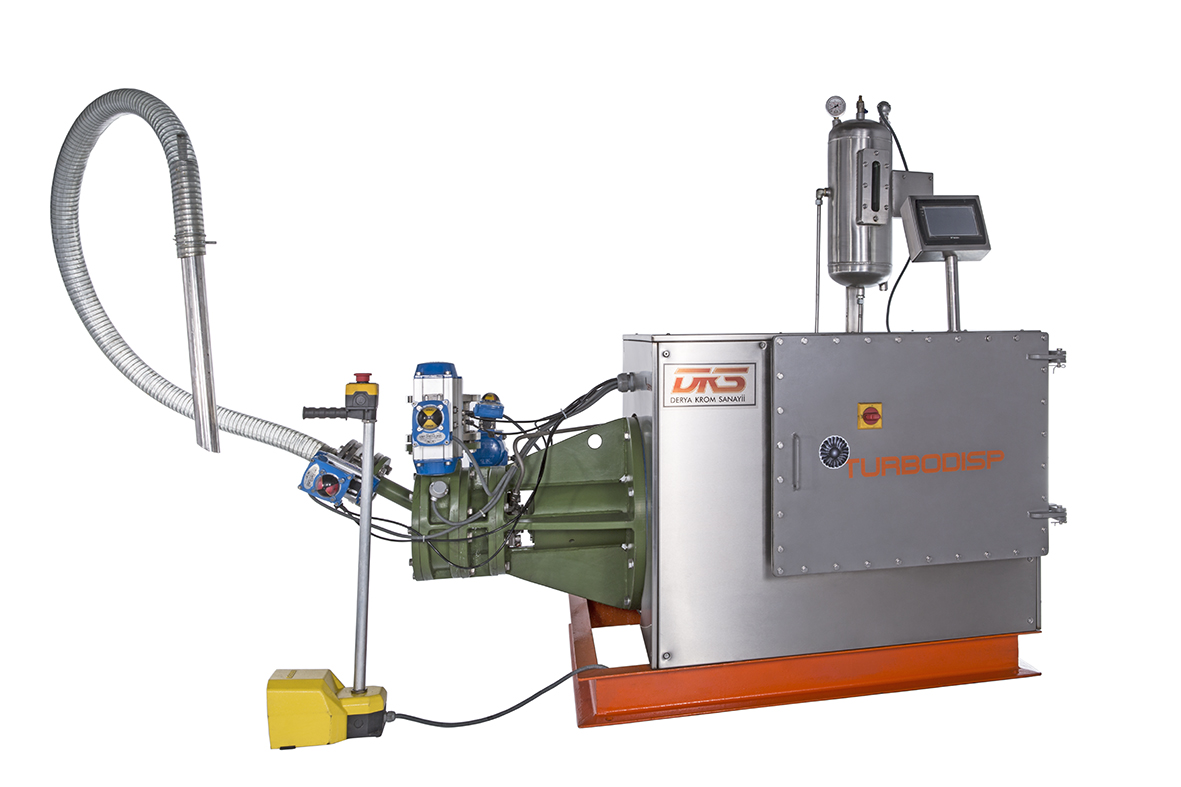

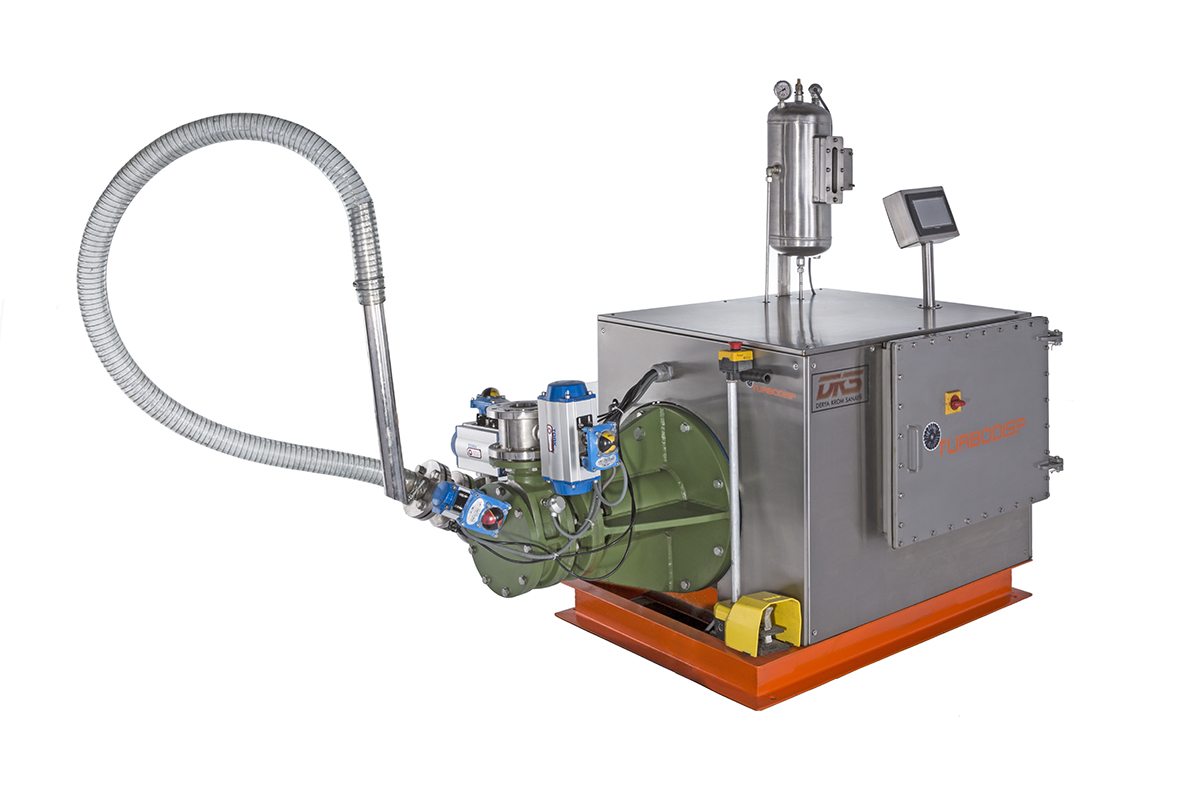

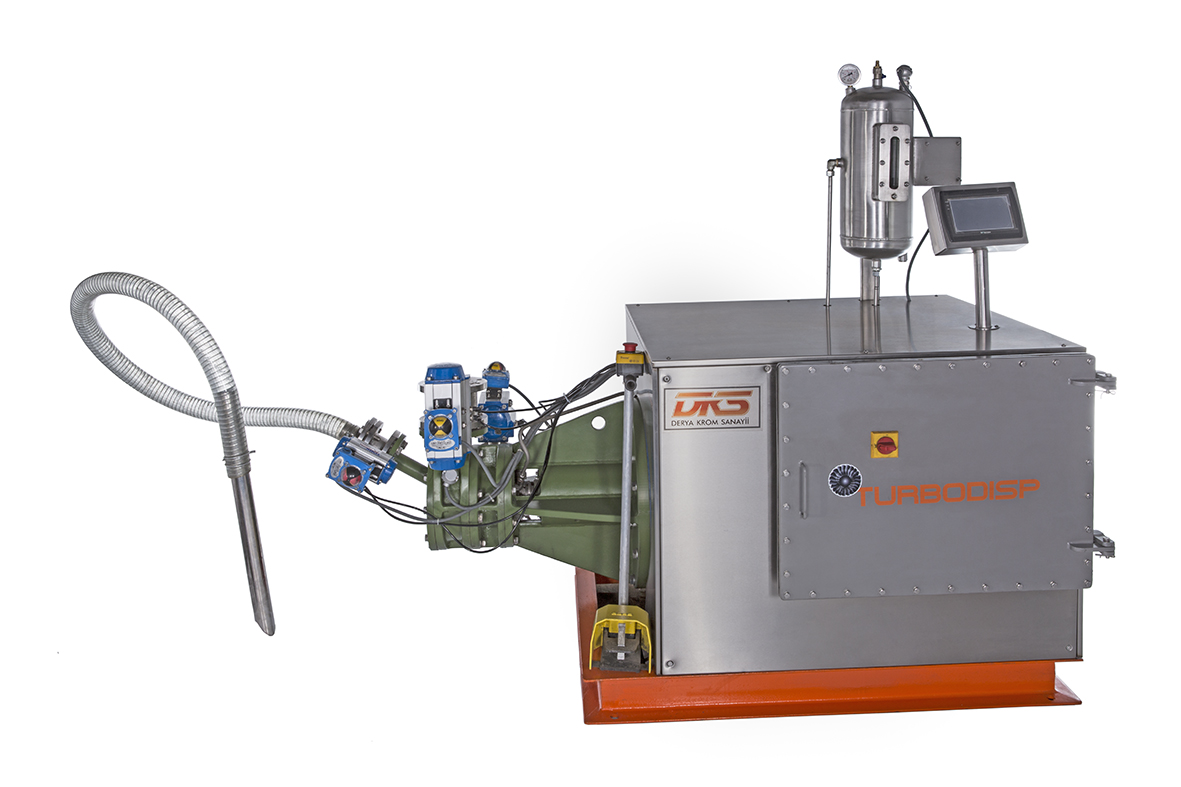

Turbodisp 200

Applicability to Every Capacity…

With a wide range of applications from 10 to 10,000 liters, it delivers high performance at high capacities. High suction power directly penetrates the fluid by extracting dust from bags, big bags, and powder hoppers, resulting in 100% lump-free mixtures.





Motor: 55 kW

Voltage: 380 V

Control: Manual/PLC

Speed: 1-3600 rpm Frequency Adjustable

Material: Stainless Alloys / Special Alloys

Dispersion Cell: 240 mm

Capacity: 3000-10,000 L (Subject to change based on the product)

Flow Rate: 2500 L/min

Cooling: Optional

Dust Extraction Pressure: 700 mmHg

Maximum Viscosity: 200,000 mPa

Optional Accessories: Tank (10-50 L), Powder/Liquid Feeding Container
